- For energy saving, fitted size of Aspirator is necessary
|
|
|
|
| |
|
■ Types of Aspirator
|
| Type |
|
Yarn |
|
Air Consumption
(N㎥/at 6bar) |
|
reference |
|
| Denier |
Speed (m/min) |
|
| IA-50 |
|
~ 1,000 |
~ 1,500 |
|
25 ~ 30 |
|
- |
|

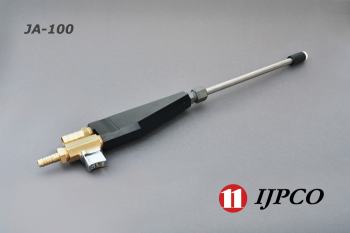

| IA-100 |
|
~ 1,500 |
~ 2,000 |
|
50 ~ 70 |
|
- |
|
| IA-200 |
|
~ 1,500 |
~ 3,000 |
|
80 ~ 100 |
|
- |
|

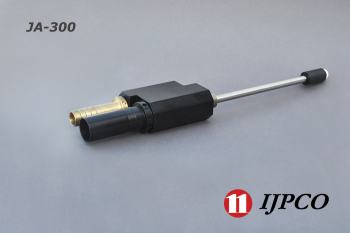

| IA-300 |
|
~ 2,000 |
~ 4,500 |
|
180 ~ 250 |
|
- |
|
| IA-300S |
|
~ 2,000 |
~ 4,500 |
|
180 ~ 250 |
|
Static type |
|

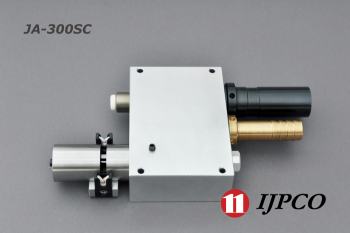

| IA-300SC |
|
~ 2,000 |
~ 4,500 |
|
180 ~ 250 |
|

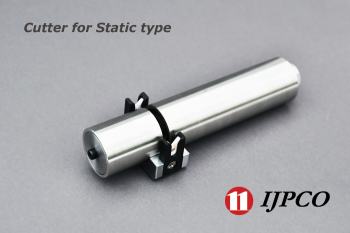

Static type with cutter |
|
In Synthetic yarn industry for string-up & doffing on winders
Aspirators (Yarn suction guns) are most commonly used.
There are various kind of model such as for high speed, low speed,
heavy denier yarn and static model etc.
For every application model should be selected as required depending on application to optimize on air consumption.
Using higher air consumption model is obviously will lead to wastage.
8 N Cubic meter air is equivalent to 1 KWH energy. |
|
