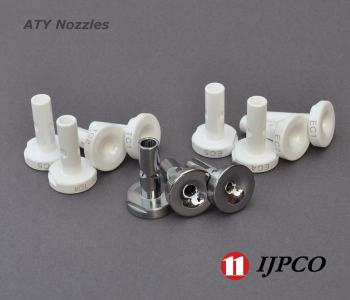

Air Texturing Nozzle
|
|
|
- For air textured yarn of filament
- Tight and even loop.
- High speed texturing available.
- Low air consumption (Energy saving)
- Various types of nozzles are available.
- High hardness of material(IMC-3) makes
less abrasion and long lifetime of nozzles.
- Special nozzles are available on request.
|
|
|
|
| |
■ Types of nozzle
|
| Type |
|
Feed Denier |
|
Winding Speed
(m/min) |
|
Denier Per
Filament |
|
Effect Yarn
Over-feed (%) |
|
Material |
|

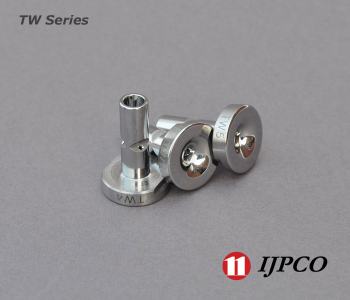

Tw1
|
|
30 ~ 400 |
|
~ 600
|
|
1.0 ~ 2.5 |
|
~ 60 |
|
Tungsten Carbide
(IMT-2) |
Tw2
|
125 ~ 720 |
~ 600 |
1.5 ~ 4.0 |
~ 70 |
Tw4
|
225 ~ 1,800 |
~ 500 |
2.5 ~ 6.0 |
~ 80 |
| Tw5 |
450 ~ 4,600 |
~ 500 |
|
~ 80 |
|

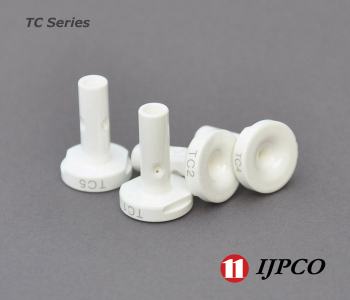

TC1
|
|
30 ~ 400
|
|
~ 600 |
|
1.0 ~ 2.5
|
|
~ 60 |
|
Ceramic
(IMC-3) |
TC2
|
125 ~ 720 |
~ 600 |
1.5 ~ 4.0 |
~ 70 |
TC4
|
225 ~ 1,800 |
~ 500 |
2.5 ~ 6.0 |
~ 80 |
| TC5 |
450 ~ 4,600 |
~ 500 |
|
~ 80 |
|

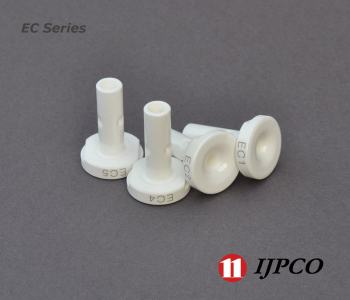

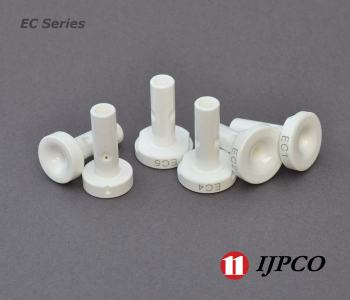

EC0
|
|
20 ~ 300 |
|
~ 1,000 |
|
0.5 ~ 2.5 |
|
~ 45 |
|
Ceramic
(IMC-3) |
EC1
|
30 ~ 400 |
~ 1,000 |
0.5 ~ 2.5 |
~ 45
|
EC2
|
125 ~ 720 |
~ 900 |
0.8 ~ 3.5 |
~ 45 |
EC4
|
225 ~ 1,800 |
~ 800 |
0.8 ~ 5.5 |
~ 45 |
| EC5 |
450 ~ 4,600 |
~ 700 |
|
~ 40 |
|
※ This table is based on Core/Effect process with 10bar pressure for reference.
■ Recommended condition
- Range of pressure : 8 ~ 14 bar
- Temperature : 20 ~ 30℃
- Relative humidity : upto 40%
- Maximum residual oil content : 0.1 mg/m3
- No abrasive particles, size under 1㎛, Density under 1mg/m3
|
|
