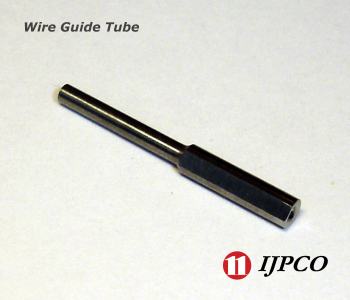

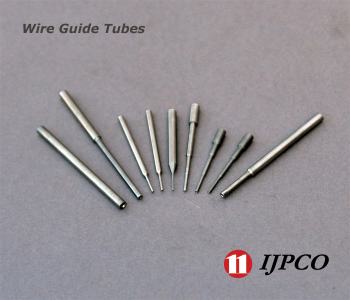

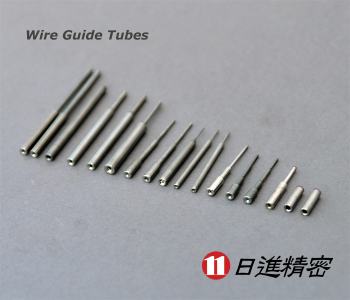

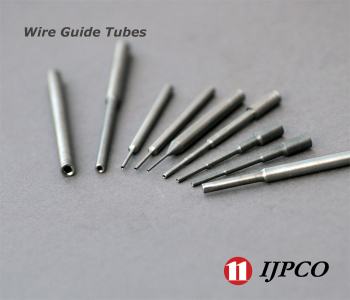

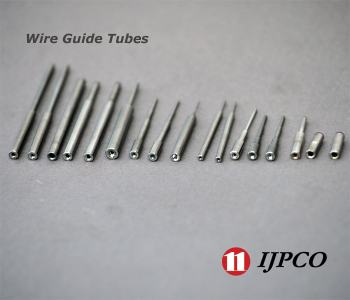

Wire Guide Tubes
|
|
|
- Called also as wire guide nozzles, needles and eyelet
- For automatic coil winding machine

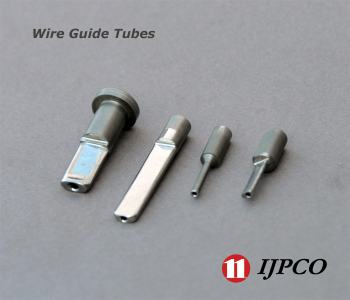

- Custom designed tubes
- Excellent "R" Shape provide the seamless route
for enanmelled copper wire
- Half radi or full radi is available depend on the winding
angle of customer
- Mirror finished surface maintain smooth tension and
no damage to enamelled layer of wire

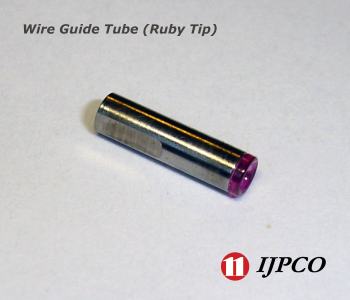

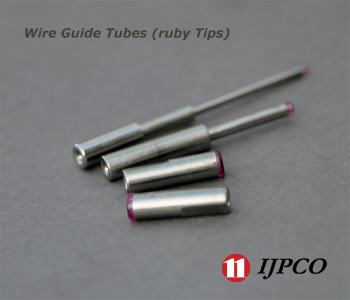

- Ruby nozzles and special steels are available
by customer's request.
|
|
|
|
| |
■ Standard Model
|
| Diameter (mm) |
|
|
|
| Outside (OD) |
|
Inside (ID) |
|
|
Φ2.0 |
|
0.3, 0.4, 0.6, 0.8, 1.0, 1,2 |
|
|
Φ3.0 |
|
0.2, 0.3, 0.4, 0.5, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6 |
|
|
Φ4.0 |
|
0.6, 0.8, 1.0, 1,2 1.4 1.6 1.8 |
|
|
The Dimensions are defined in the following way
We also provide non-standard model like longer than 45mm length, smaller than 0.6mm ΦOD3 and smaller than
0.3mm ΦID on the customer's request.
|
|
