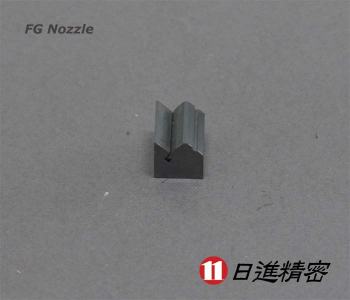

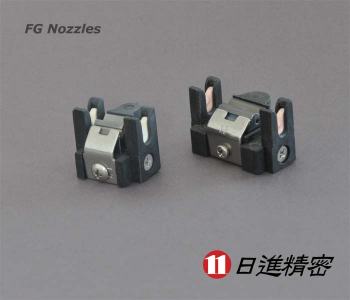

FG (Fiber Guide) Nozzle
|
|
|
- Interlacer for Draw twister, Cone winding machine,
DTY Machine
- Material of Nozzle is Tungsten Carbide or Ceramic
- Triangular air channel makes very high pressure
at low pressure (2~3 bar)
- High frequency and regular nip count
- FG-1, FG-4 are available
|
|
|
|
| |
■ Types of nozzle
|
| No. |
|
Triangle
(mm) |
|
Air Hole
(mm) |
|
Guide
(mm) |
|
Length
(mm) |
|
Air Consumption
(mm) |
|

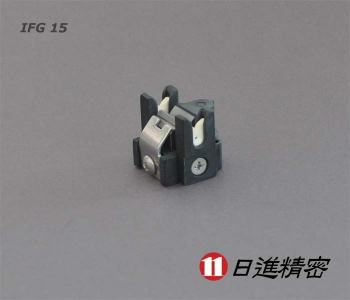

| IFG15-201015 |
|
2.0 |
|
1.0 |
|
1.5 |
|
15 |
|
20 |
|
|
|
| IFG15-201315 |
1.3 |
40 |
|
|
|
|
|
| IFG15-251315 |
2.5 |
1.3 |
1.5 |
40 |
|
|
|
|
| IFG15-251325 |
1.3 |
2.5 |
50 |
|
|
|
|
| IFG15-251515 |
1.5 |
1.5 |
40 |
|
|
|
|
| IFG15-251525 |
1.5 |
2.5 |
50 |
|
|
|
|
|
|
| IFG15-302025 |
3.0 |
2.0 |
2.5 |
20 |
75 |
|
|
|
|
|

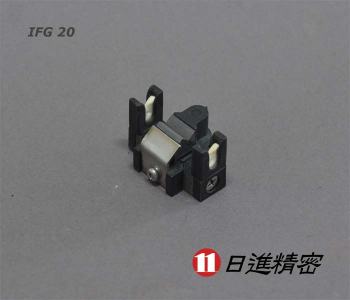

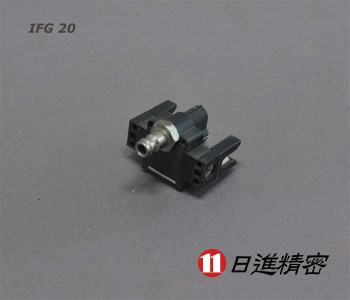

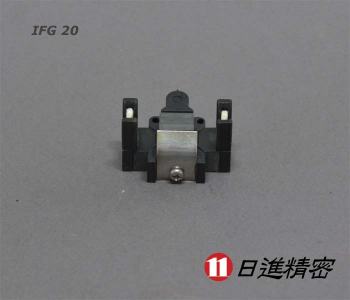

| IFG20-201015 |
2.0 |
1.0 |
1.5 |
20 |
|
|
|
| IFG20-201315 |
1.3 |
40 |
|
|
|
|
|
| IFG20-251315 |
2.5 |
1.3 |
1.5 |
40 |
|
|
|
|
| IFG20-251325 |
1.3 |
2.5 |
50 |
|
|
|
|
| IFG20-251515 |
1.5 |
1.5 |
40 |
|
|
|
|
| IFG20-251525 |
1.5 |
2.5 |
50 |
|
|
|
|
|
| IFG20-302025 |
3.0 |
2.0 |
2.5 |
75 |
|
※ Air consumption result is under 2.5 bar pressure. |
|
